Replace IP in BSD Loopback PCAP
Problem description
BSD loopback header is not supported by tcprewrite if you want to replace ip adresses. The result after executing tcpwrite is a malformed pcap or there will be no changes at all.
Solution summary
Change DLT and add ethernet header to each packet.
Setup
| Software | Version |
|---|---|
| FreeBSD | 13.0-RELEASE-p11 |
| tcprewrite | 4.4.1 |
| tcpprep | 4.4.1 |
| tcpdump | 4.9.3 |
Installation
pkg install -y tcpreplay
Adding Ethernet EN10MB headers

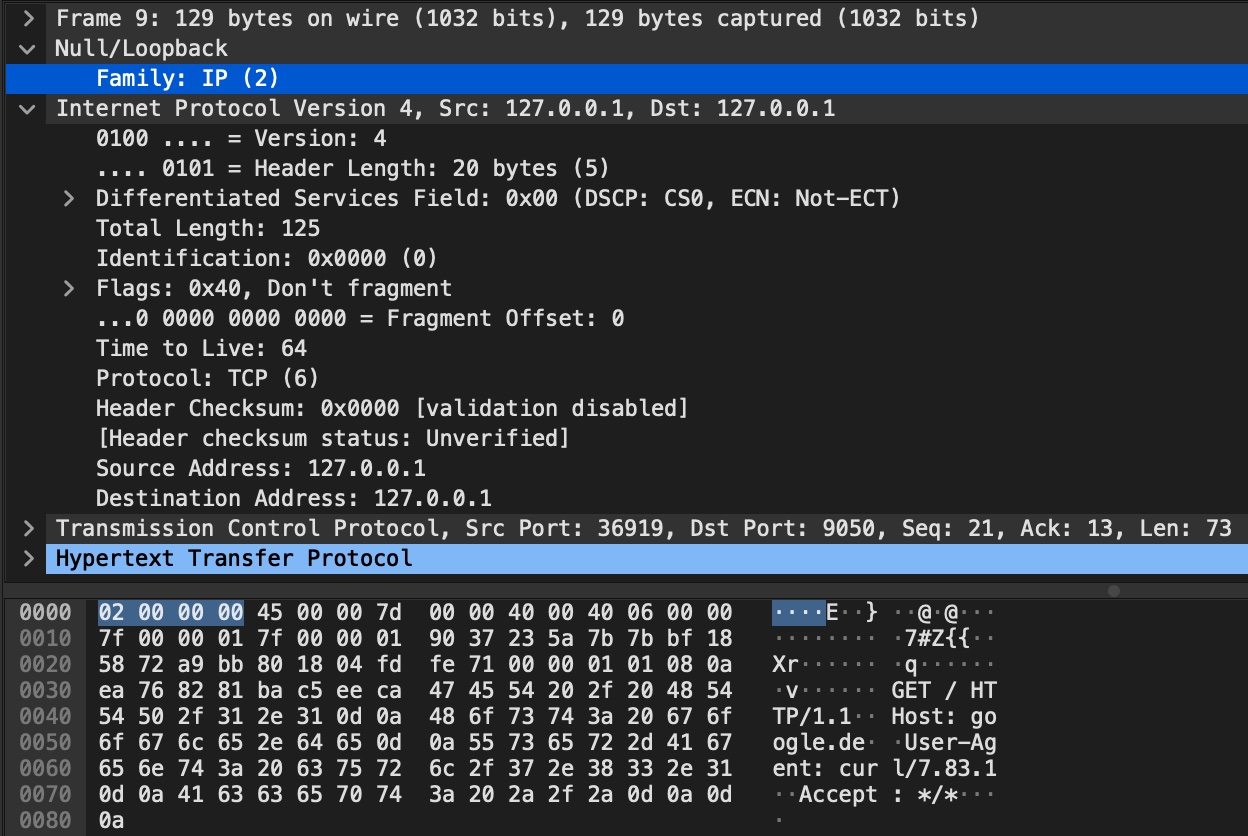

As you can see the BSD loopback header only contains 4 bytes.
Executing tcprewrite will overwrite parts of the ip header because tcpwrite would expect an ethernet header.
Insert bytes:
tcprewrite --dlt=user --user-dlink=01,02,03,04,05,06,1A,2B,3C,4D,5E,6F,08,00 --infile=orig.pcap --outfile=tmp.pcap
Change dtl:
tcprewrite --dlt=enet --infile=tmp.pcap --outfile=enet.pcap

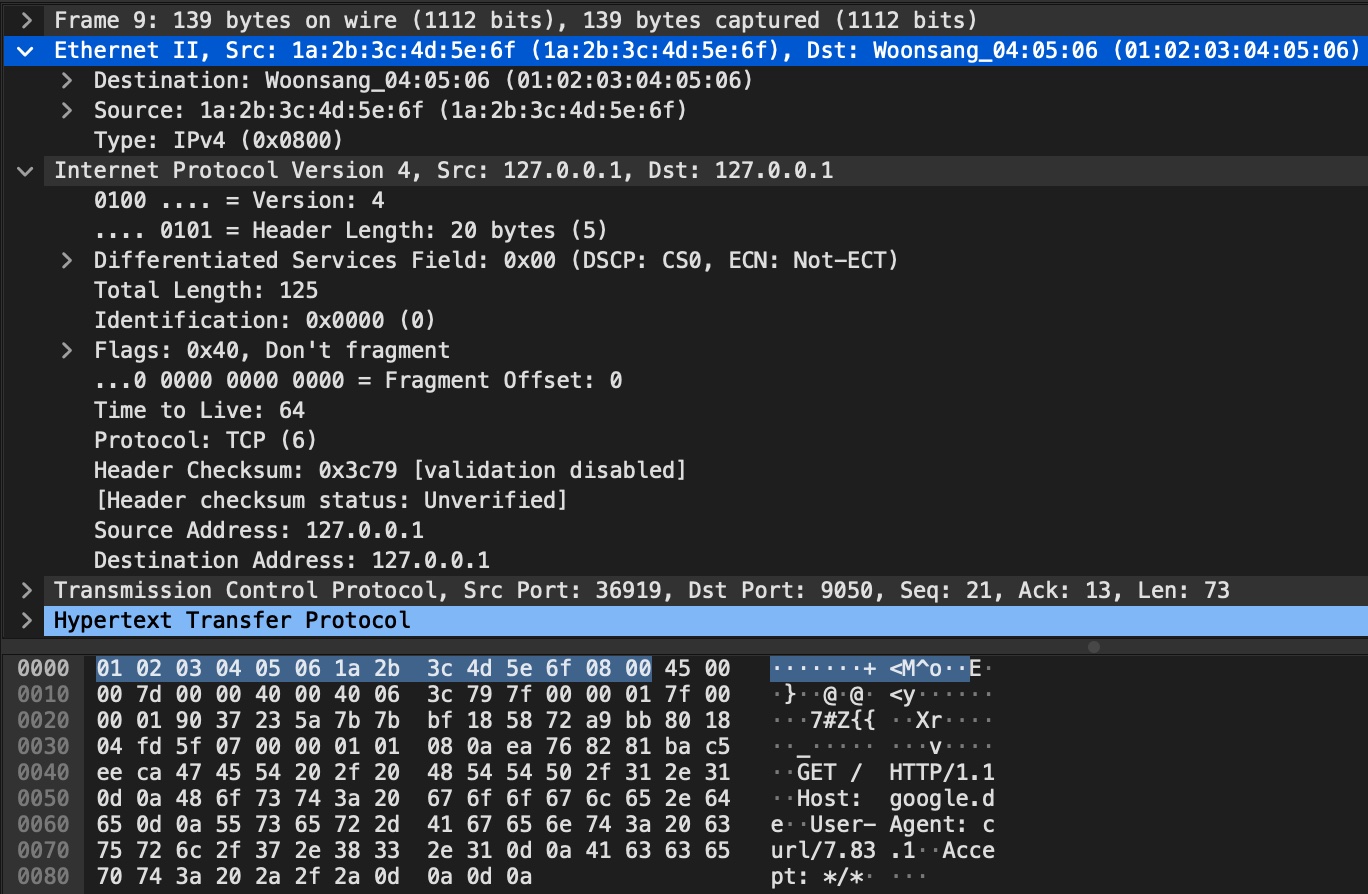

We successfully added an ethernet header.
Replacing ip addresses
Create the cachefile:
tcpprep --port --pcap=enet.pcap --cachefile=in.cache
Replace ip addresses:
tcprewrite --cachefile=in.cache --endpoints=1.1.1.1:2.2.2.2 --infile=enet.pcap --outfile=replaced.pcap
Maybe you have to recalc ethernet checksums.
Check the result
tcpdump -r replaced.pacp
